Marcé Custom Pumper

Cabin ECE R29-3 Crash Test Certified

Vehicle Overview

Chassis

  • Marcé Custom 4x2
  • Engine Output 380 HP
  • Allison Automatic Transmission
  • 11R22,5 Tyres, Double Rear Wheels

Fire Fighting System

  • Centrifugal pump 4000 l/min
  • 10 bar NP and 250 l/min @ 40 bar HP
  • 200 CFM CAFS Compressor with Smart ATP
  • 3000 litre Water Tank
  • 150 L Class A Foam, 150 L Class B Foam
  • 4000 l/min electric monitor with riser

Ancillary Equipment & Fixtures

  • Marcé fire fighting tools and equipment
  • Hydraulic rescue tools
  • Pull down ladder gantry
  • Reverse camera with screen on dashboard
  • Powder coated heavy duty bull bar with 5 ton winch fitted

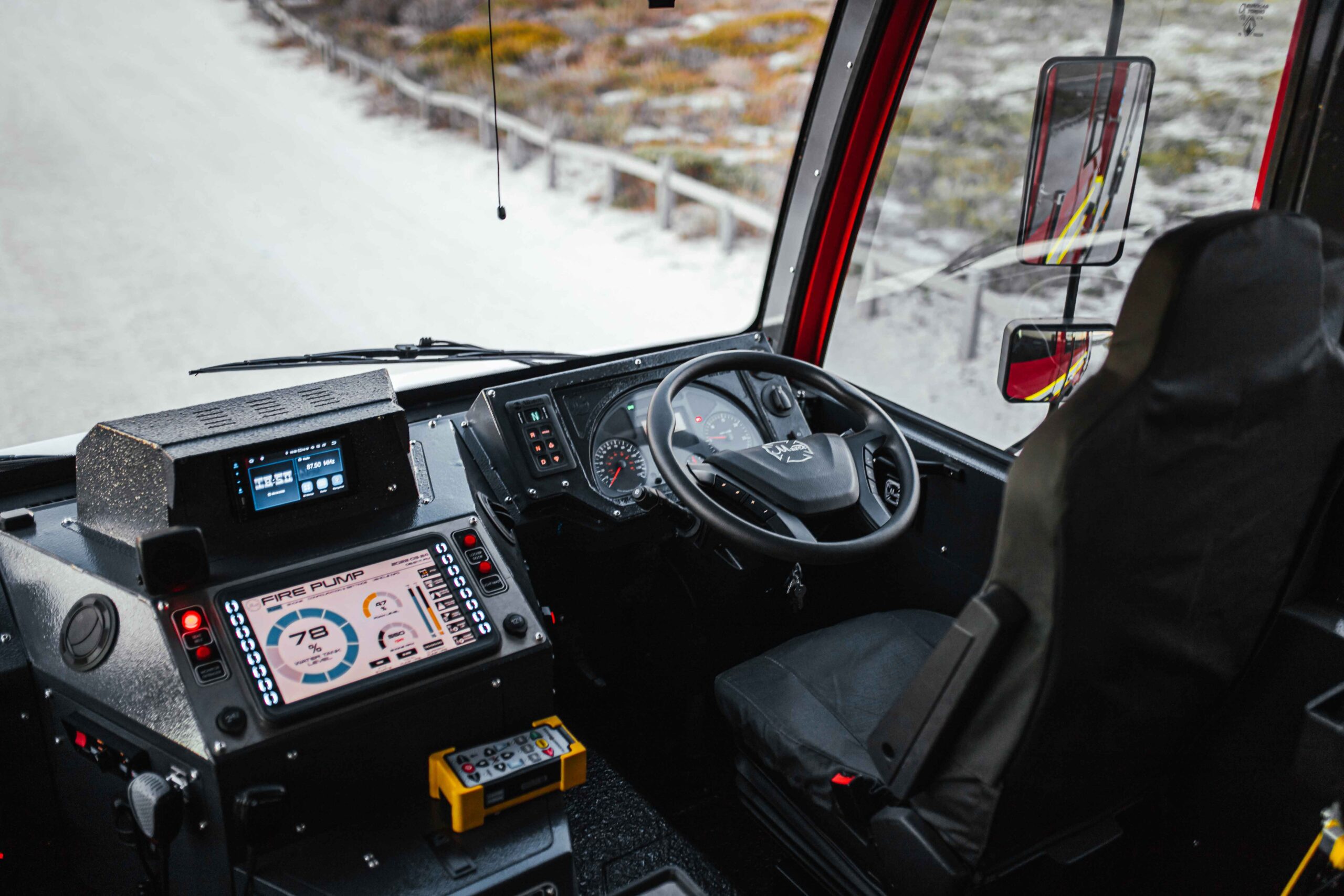

Driving & Crew Compartment

  • Crew 1 + 5 with 4 rear SCBA seats
  • Marcé Custom Cabin, ECE R29-3
  • Fully air conditioned

Pump Discharges

  • 2 normal pressure rear facing manual discharge outlets
  • 2 High pressure outlets to hose reels
  • 2 dedicated CAFS normal pressure discharge outlets

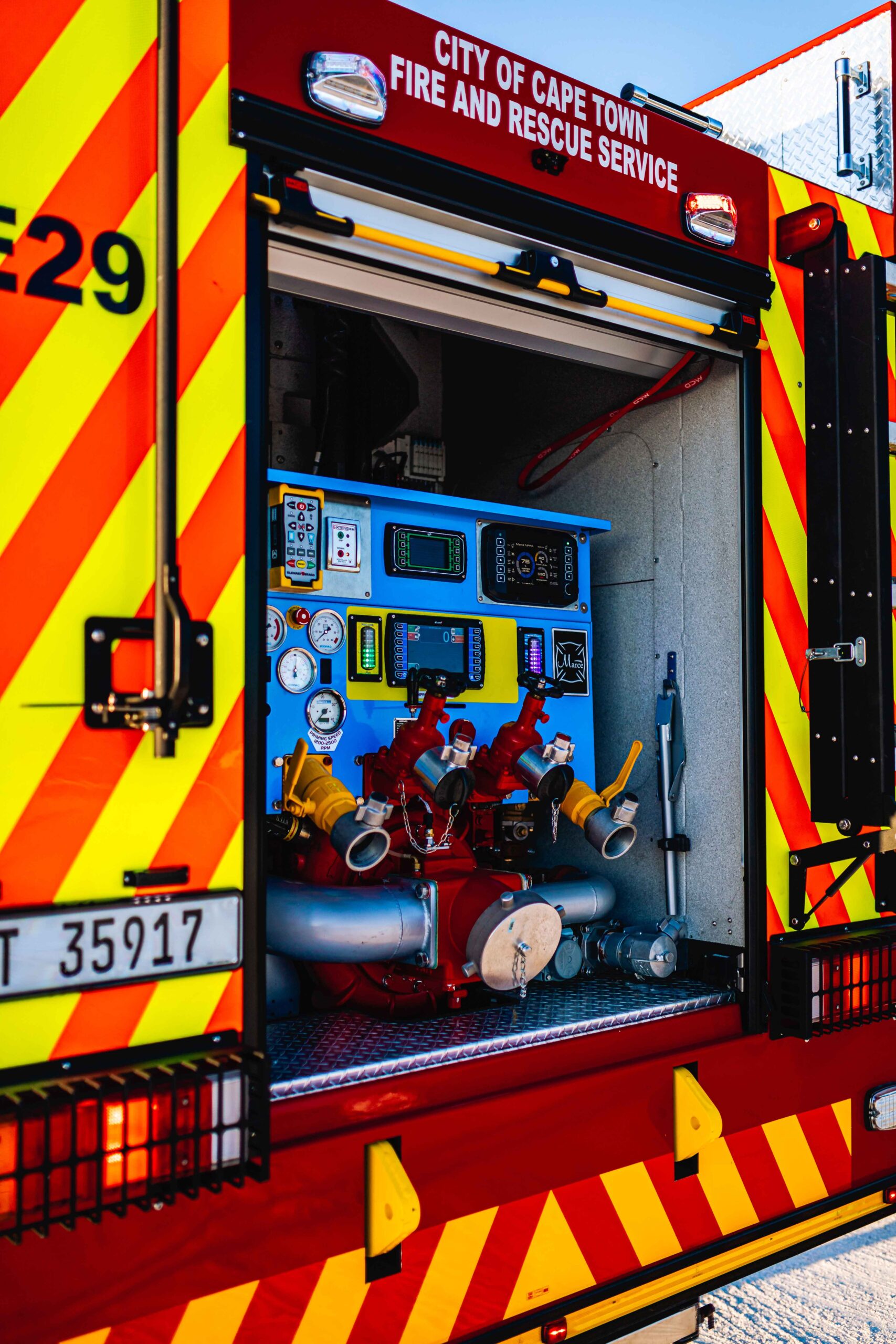

Control System

  • Marcé electronic pump control system
  • Smart CAFS ATP

Emergency Lighting & Siren System

  • LED light bar
  • Red LED flashers on vehicle
  • 200w Public address and siren system

Vehicle Body

  • Marcé all aluminium extrusion and bended plate body welded for added strength and durability
  • 6 lateral full height body compartments
  • 1 rear body compartment with drop down step housing the pump

Hose Reels

  • Two 30m x 25mm high pressure hose reels
  • c/w high pressure nozzles and foam adaptors fitted in rear side compartments

Lighting

  • 2 LED scene lights at rear of body
  • 3 LED scene lights each side of the vehicle
  • LED ground lights under vehicle
  • LED Pneumatic Light Mast
