4x4 ARFF Rapid Intervention

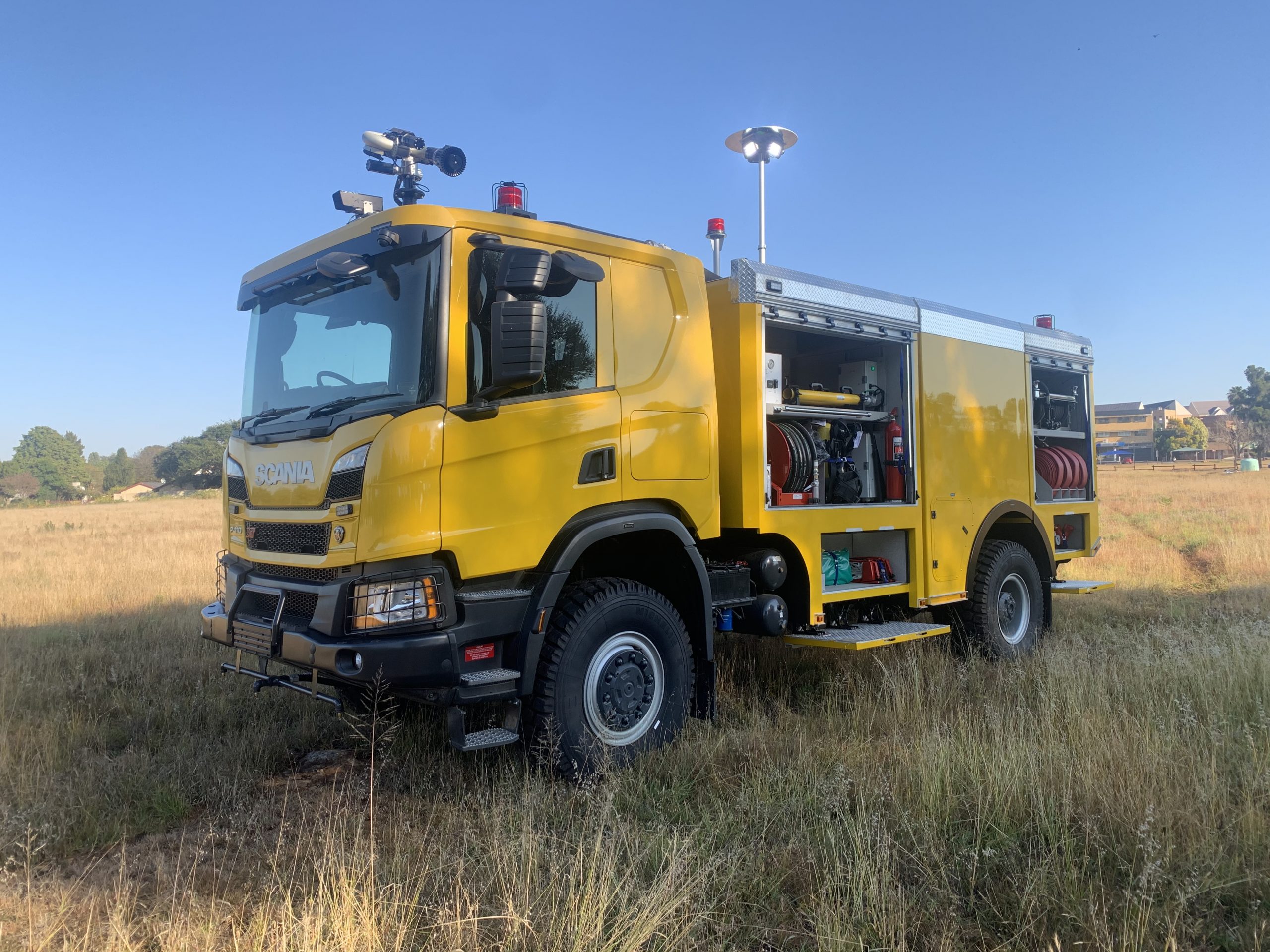

Scania P410CB 4x4 HHZ CPL, Euro 3

Vehicle Overview


  • Scania P410CB 4x4 HHZ CPL, Euro 3
  • Engine output: 410 Hp (302kW @ 1900rpm)
  • GA867R Allison Transmission
  • Wheelbase of 4550mm

Fire Fighting System

  • Centrifugal pump 4000l/min NP and 400 l/min HP
  • Automatic around the pump foam system
  • Water tank : 4500 litre, Foam tank : 540 litre (GRP)
  • Marcé Mamba 3 Roof Turret controlled via joystick in cabin
  • 5 Ground sweep nozzles
  • Pump and roll capability
  • 250kg Dry Chemical Powder system with hose reel and nozzle, pneumatically actuated control panel and nitrogen propellant cylinder

Additional Equipment

  • Marcé fire fighting tools and equipment to ICAO
  • Obstruction LED mast on roof
  • Forward looking infrared camera on roof

Driving & Crew Compartment

  • Seats 1 + 2 with SCBA seats for passenger and 1 crew
  • Scania OEM 2 door all steel single cab
  • Fully air conditioned, dash integrated reverse camera

Pump Discharges

  • 4 normal pressure discharges , 2 each side
  • 2 High pressure outlets to hose reels
  • 1 discharge to roof turret
  • 1 discharge to ground spray nozzles

Electrical System (24v System)

  • Marcé custom wiring loom terminating in a dedicated junction box

Vehicle Body

  • Marcé all aluminium extrusion and bended plate body welded for added strength and durability
  • One transverse locker behind cab, two lockers behind water tank c/w four fold down step lockers
  • Adjustable shelving
  • LED compartment lighting

Emergency Lighting & Siren System

  • Red LED lightbar
  • Red LED rotators at rear
  • Red LED flashers on vehicle
  • 100w Public address and siren system
  • Top mounted airway flashers


  • 2 x LED scene lights at rear of body
  • LED ground lights under vehicle
  • LED Pneumatic Light Mast recessed in body
